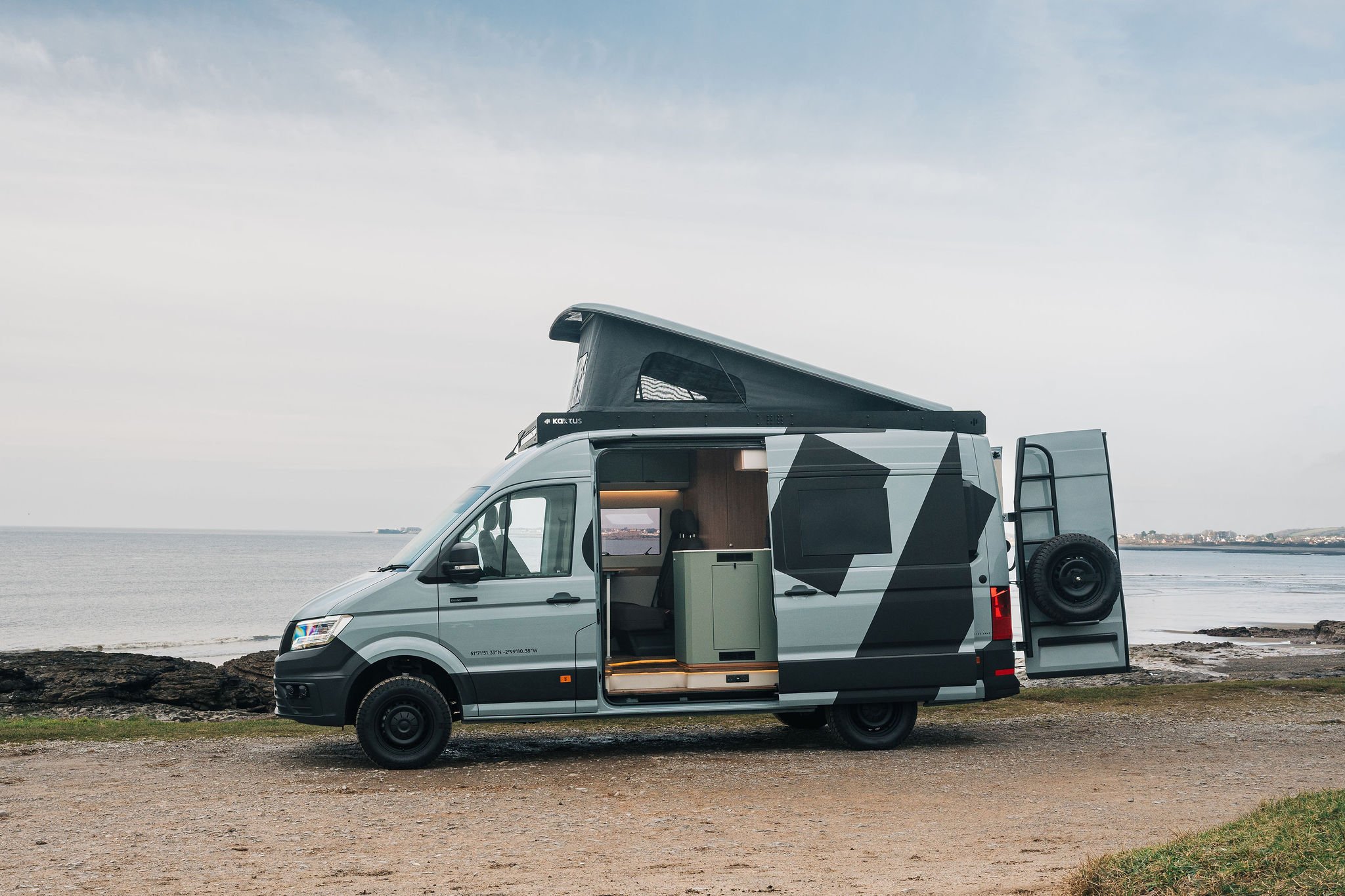

DUNE MWB | 4x4 | DSG starting price: £128 500

TECHNICAL SPECIFICATIONS

  • MAN TGE | VW CRAFTER

    3.180 4X4

    8-GEAR AUTOMATIC GEARBOX,

    ALL-WHEEL DRIVE

    EMISSION STANDARD EU6 AR

  • SUSPENSION/ SHOCK ABSORPTION AND STABILIZATION PACKAGE

    DIFFERENTIAL LOCK

  • LED HEADLAMPS WITH LED SEPARATE DAYTIME RUNNING

    LIGHTHEAT-INSULATING WINDSHIELD MADE OF LAMINATED GLASS,

    HEATED RETRACTABLE HAND BRAKE LEVER

    ADAPTIVE CRUISE CONTROL

    ACC WITH SPEED LIMITER AND STOP

    REAR VIEW CAMERA SYSTEM

    LEATHER-WRAPPED MULTI-FUNCTION STEERING WHEEL (3-SPOKE), HEATED

  • OVERALL LENGTH 5986 MM

    OVERALL WIDTH 1993 MM

    OVERALL HEIGHT 2905 MM (DEPENDING ON THE SUSPENSION CHOICE)

    GROSS WEIGHT 3.500 KG (CAN BE UPPLATED TO 4.200 KG)

  • LIGHT GREY 9703 | SQUIRREL GRAY R7000 | OAK GREEN LN6N | DEEP BLACK PEARLESCENT

EXTERIOR

  • SIDE FLARES ON BOTH SIDES SPRAYED IN THE BODY COLOUR

  • ROOF POD TO CREATE EXTRA HEIGHT AND LIGHT

    2 OPENING HATCHES

    SPRAYED IN THE BODY COLOUR

  • OPENING HATCH TO A SEATING AREA

    2X FULLY OPENING KAKTUS SIDE WINDOWS

  • 16’’ POWDER-COATED BLACK RIMS WITH OFF-ROAD TYRES X4

    60MM LIFT KIT

  • POWDER COATED TEXTURED BLACK

    300 WATT LIGHTBAR

    6 X SIDE SPOT LIGHTS (4 X SPOT LIGHTS IF AWNING FITTED)

  • GRAPHICS

    BADGES

  • CUSTOM MADE KAKTUS GRILL

INTERIOR

  • FRIDGE

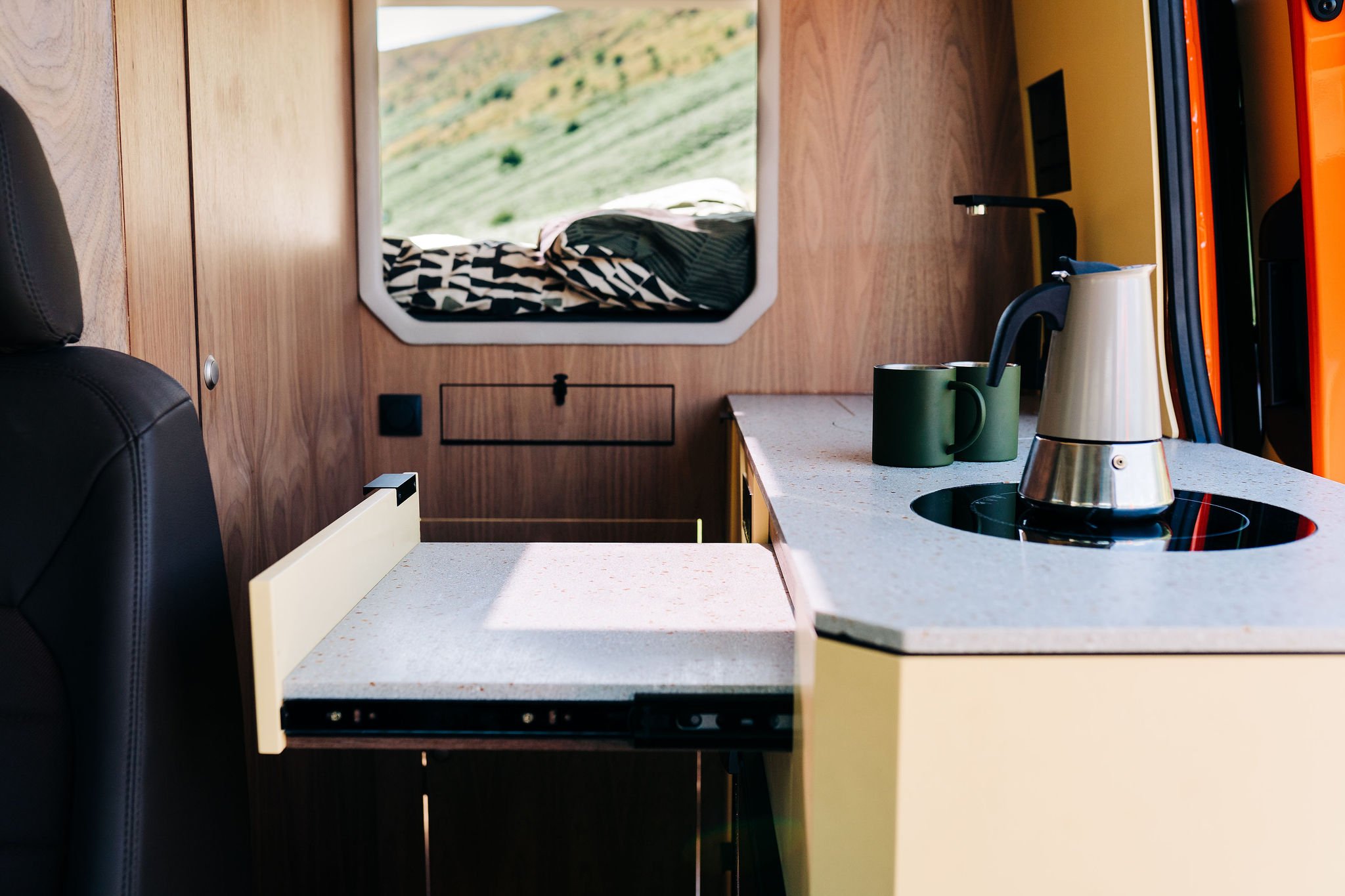

    SOLID SURFACE KITCHEN WORKTOP AND SLIDE-OUT WORKTOP

    HOT AND COLD WATER FEEDS

    INDUCTION HOB

  • KAKTUS CUSTOM SINK

    MIRROR

    CASSETTE TOILET WITH MAIN TANK WATER FEED FLUSH

    THE HOT AND COLD TAP AND THE SHOWER

    EXTERNAL HATCH FOR CASSETTE

    VENT IN THE TOILET WITH A SWITCH

  • 75-LITRE FRESH WATER TANK WITH HOSE AND ELECTRIC PUMP FILL

    75-LITRE WASTE TANK

    12V / 240V 10 LITRE WATER HEATER

    GAUGES FOR BOTH TANKS ON THE CERBO CONTROL PANEL

    FULL PRESSURISED WATER PUMP

    EXTERNAL WATER PUMP TO FILL TANKS IF NO MAINS WATER AVAILABLE

  • 4KW DIESEL HEATER

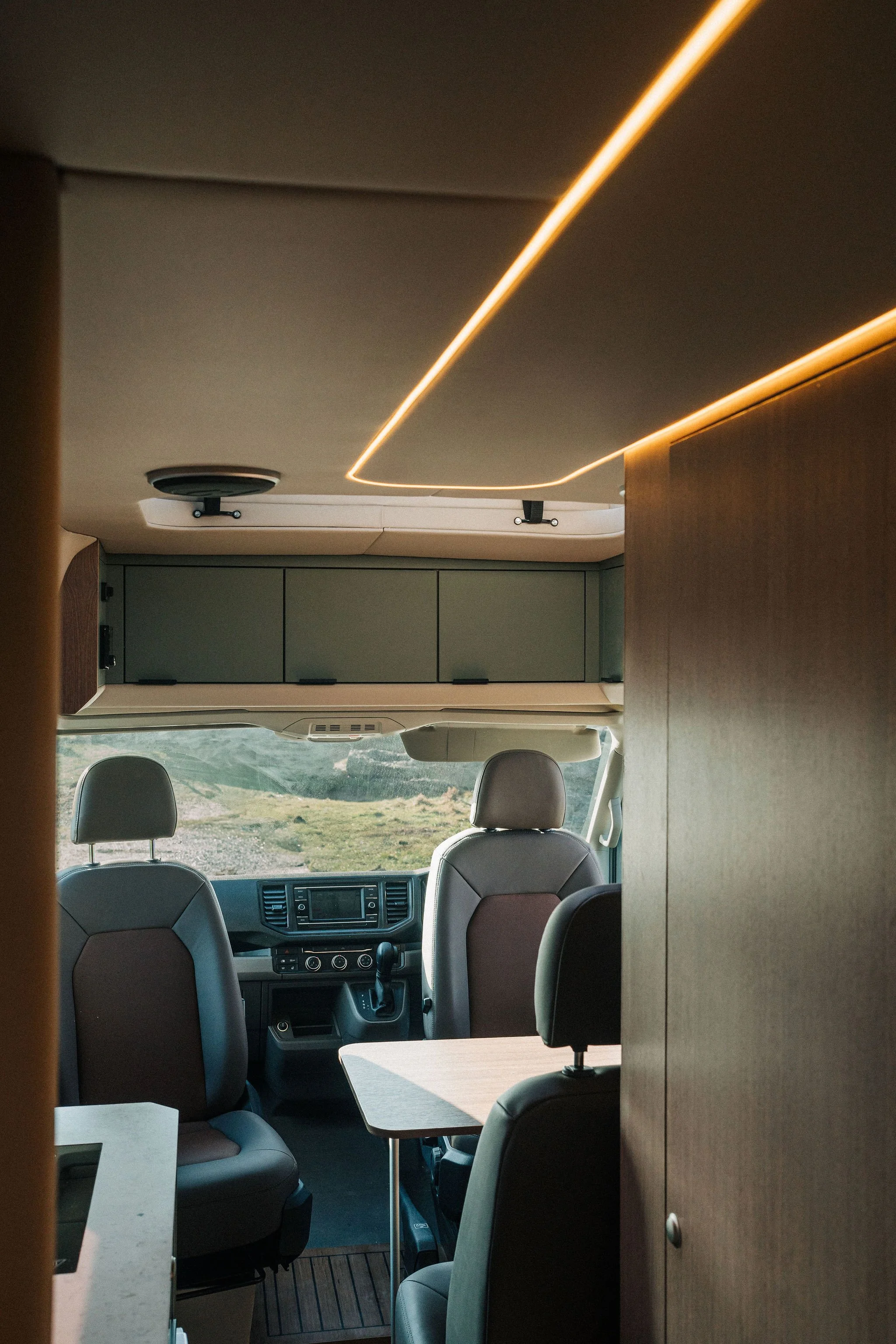

  • SEAT SWIVELS FOR BOTH FRONT SEATS WITH RETRACTABLE HAND BRAKE

    REAR SEATS WITH 2 SEAT BELTS, TRIMMED TO MATCH THE FRONT SEATS

    TABLE STORED IN THE GARAGE

  • MARINE VINYL WALL TRIMS

  • 2X 75W SOLAR PANELS

    VICTRON CERBO GX WITH 7’’ TOUCH SCREEN ON THE CONTROL PANEL

    VICTRON SMARTSOLAR MPPT

    VICTRON MULTIPLUS 12/1600/70 INVERTER CHARGER

    VICTRON LYNX POWER IN

    VICTRON ORION- ISOLATED DC-DC CHARGER

    2 X 100 AH AGM BATTERIES

    VICTRON SOLAR CONTROL WITH AN EXTERNAL POINT FOR UP

    TO 300 WATTS EXTRA SOLAR

    VICTRON SMART BATTERYPROTECT

    VICTRON SMARTSHUNT

    DIGITAL MULTI CONTROL

    240V CONSUMER UNIT

    KAKTUS SWITCH CONTROL PANEL

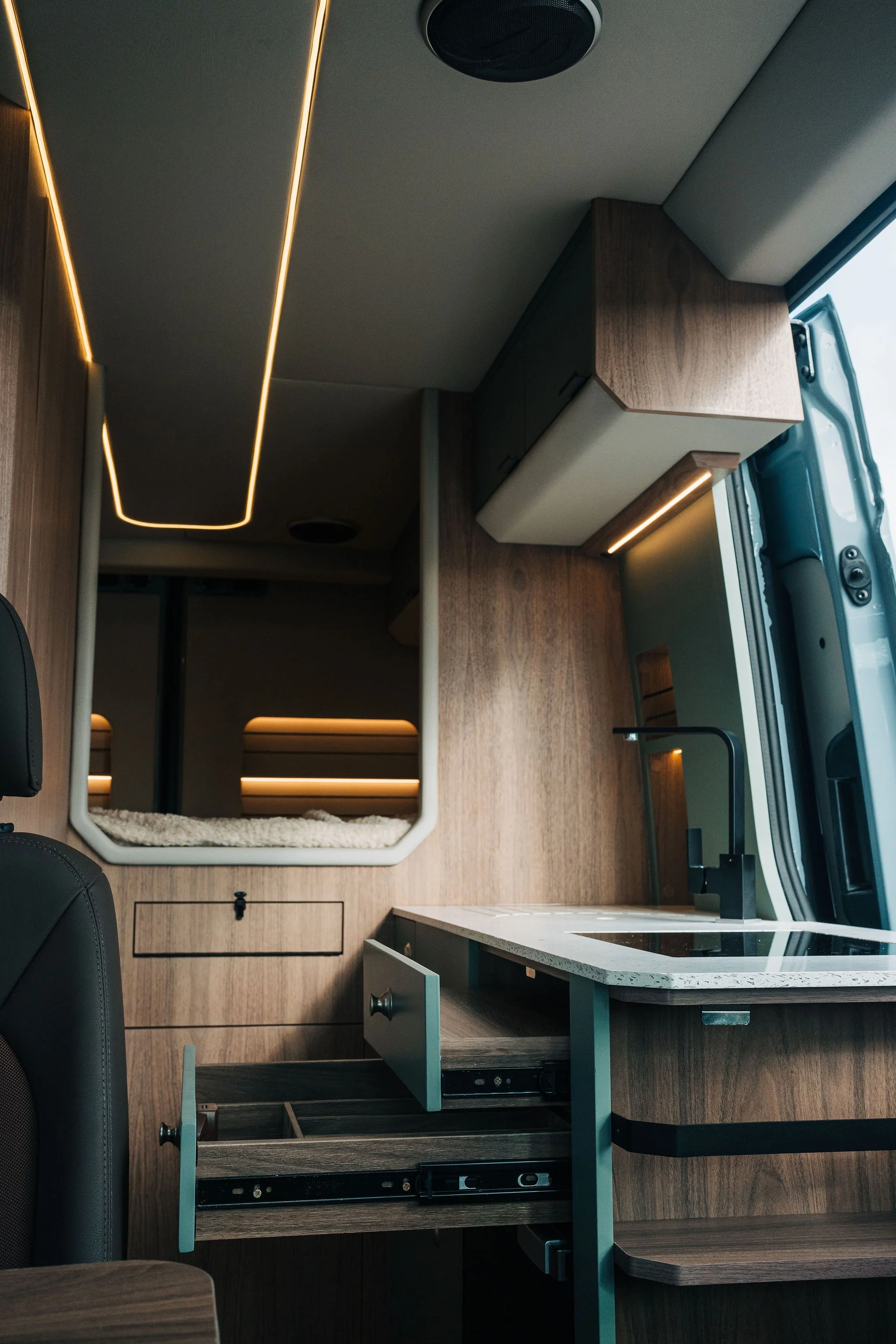

  • LED LIGHTING THROUGHOUT

    BOAT STYLE FLOORING

    REAL WOOD VENEER

    FURNITURE LIGHTWEIGHT COLOURED GALLEY KITCHEN AND OTHER FEATURES

    MATCHING HPL IN THE BATHROOM

    WOODEN GRATE IN SHOWER TRAY

    ALL INTERNAL STRUCTURES IN LIGHTWEIGHT MATERIAL

    MEMORY FOAM DOUBLE BED WITH CUSTOM KAKTUS COVER

    SLIDE-OUT LADDER TO ACCESS THE BEDROOM

    SOUND DEADENING AND THERMAL INSULATION THROUGHOUT THE VAN

  • 13AMP SOCKET ANTHRACITE

    3X 12V CIGAR SOCKET ANTHRACITE

    3X TWIN USB CHARGER

    230V ELECTRIC SOCKETS

OPTIONAL EQUIPMENT

  • 4G WIFI SYSTEM £650

    15’’ SCREEN IN THE BEDROOM AREA WITH A FIRESTICK £500

    FRONT SCHEEL MANN SEATS WITH HEATING AND ARMREST RETRIMMED BACK SEATS TO MATCH £4500

    THE HOT AND COLD REAR SHOWER £150

  • MARINE RADIO WITH DAB, SUBWOOFER AND 8 X JBL SPEAKERS £900

    FUSION RADIO AND SPEAKERS £1400

  • S5 D-ID VEHICLE TRACKER £499

    CCTV SYSTEM WITH 4 CAMERAS, SCREEN; RECORDING £900

  • VICTRON SHORE POWER INLET 16A STAINLESS STEEL WITH COVER £80

    SHORE POWER CABLE £50

    UPGRADE FROM 2X AGM TO 2X LITHIUM BATTERY £1800

    2X EXTRA LITHIUM BATTERY 12.8V/100AH UNDERMOUNTED £2850

    UPGRADE TO VICTRON ENERGY MULTIPLUS II 12/3000/120 INVERTER/CHARGER £350

  • WHEEL RACK WITH REVERSING SPOTLIGHT £1125

    THE 5TH WHEEL £500

    LADDER- POWDER COATED TEXTURED BLACK £855

    SIDE RAILS WITH STEP £1500

    SURFING BAR £350

    ROOFRACK UPGRADE- ROUND LIGHTS £750

    TOW BAR £1200

    AWNING 2.7M ELECTRIC £1450

    WINDSCREEN COVER £85

    BONET SOLAR PANEL £450

    INSULATION OF TANKS AND PIPES £250

  • WIDE ARCHES £1500

    FRONT BUMPER INC WINCH AND LIGHT PACK (100MM LIFT KIT REQUIRED) £3699

    WINCH (MOUNTED INTO STANDARD BUMPER) £896

    RAPTOR PAINTED TRIMS £1250

    LIGHT PACK ( 4 SPOTLIGHTS) FITTED TO STANDARD BUMPER £300

    BRAVO SNORKEL £550

  • 20’’ WHEELS WITH 265/50/20 OFF ROAD TYRES X4 £1200

    16’’ WHEELS WITH 265/70/16 OFF ROAD TYRES X4 £1400

  • COMBO 1: BIKE RACK WITH REAR RACK AND THE BOX £2499

    COMBO 2: REAR RACK AND THE BOX £1799

    ONLY EXTRA REAR RACK £1125

    ONLY EXTERIOR BOX £950

  • 100MM STANDARD LIFT KIT £4250

    BILSTEIN OFF- ROAD EXPEDITION SHOCK KIT £3470

    UPRATED REAR LEAF SPRINGS £750
